PIPE MARKING ROLLS FOR FAST AND DURABLE PIPE IDENTIFICATION

Pipe marking roll for cost-effective identification of pipes and pipelines with substance name, flow direction and hazard symbol. Laminated polyester, resistant to 120°C and UV, compliant with ISO 20560 and GHS/CLP. Brady, in all standard colours and widths.

Pipe Marking Roll assortment

Pipe Marking Roll
5890 available variants

Line marking map
1 available variants

Line marking roll
9 available variants

View the complete assortment

5900 products

Pipe marking roll for continuous and durable pipe identification

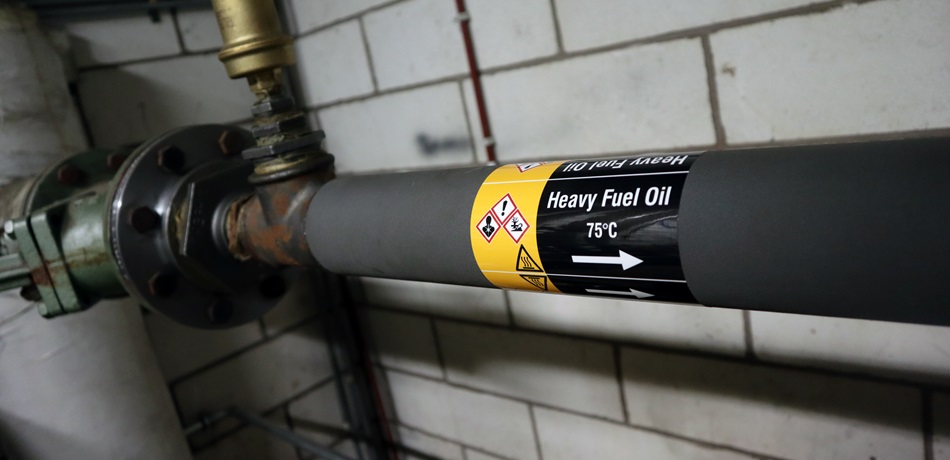

Pipe marking roll is the most cost-effective solution for marking pipes and pipelines over long lengths. The roll is cut to size and wrapped around the pipe for all-round readable marking with substance name, flow direction and hazard symbol. At a glance it is clear what flows through the pipe and in which direction the medium moves.

Ideal for large numbers of pipes carrying the same substance and for longer marking surfaces where individual card markings are less practical.

Technical characteristics of pipe marking roll

Pipe marking roll from Brady is made from laminated polyester with a strong adhesive layer for durable bonding to pipes and pipelines. Resistant to temperatures up to 120°C, UV radiation and weather for long-term indoor and outdoor use. Available in all standard colour codes in widths from 12 mm to over 100 mm for pipes from small diameter to large industrial pipelines.

Compliant with GHS/CLP and ISO 20560 for correct pipe identification.

Applications of pipe marking roll

Pipe marking roll is used in chemical plants, refineries, food industry, utilities, hospitals and industrial installations for identifying water, gas, steam, acid and other medium pipelines. Correct pipe marking is required by health and safety legislation and significantly reduces the risk of accidents during maintenance.

Also see pipe marking card and all pipe markings from Nedelko.

Why pipe marking roll from Nedelko?

Nedelko supplies Brady pipe marking roll in all common substance names, colour codes and widths, available from stock for complete pipe identification in accordance with applicable standards.

Which standards apply to pipe marking?

ISO 20560 is the international standard for pipe identification. Health and safety legislation also requires that hazardous medium pipelines are clearly marked in accordance with GHS/CLP.

What colours are pipe marking rolls available in?

In all standard colour codes: green for water, yellow for gas, red for fire protection, orange for acids and bases. Consult Nedelko for the complete colour classification per medium.

How do I apply pipe marking roll?

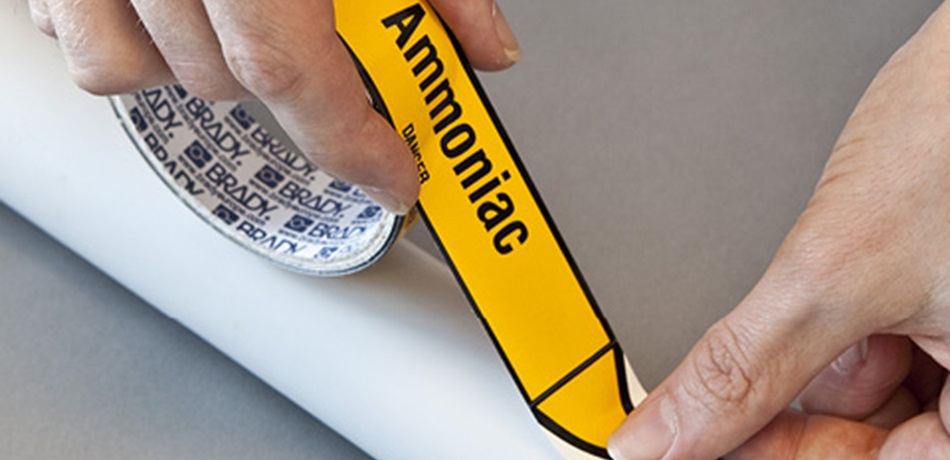

Cut the desired length from the roll, wrap the marking around the pipe and press the adhesive side down. Larger pipe diameters require wider versions for complete wrapping.

Is pipe marking roll resistant to outdoor use?

Yes, Brady pipe marking roll is UV-resistant and weatherproof for long-term outdoor use on outdoor installations and pipe bridges.

Are pipe markings available for specific substance names?

Yes, Brady supplies pipe markings for hundreds of substance names in accordance with common industrial nomenclature. Nedelko advises on the correct marking for your specific substance.
