Prolumia LED I-panel, 3000K, RA>80, 295x295 constant current 400mA, ex driver
| Serie: | Prolumia LED I-Panel |
| Art. nr: | 40007905 |
| EAN: | 8719689122003 |
| User unit: | 1 PCE |
| Brand: | Prolumia |
| Type: | 40007905 |
| Manufacturer number: | 40007905 |
- LEDs situated on the side of the fixture
- Extremely low height of 10.4mm
- Very uniform light emission
- Standard or dimmable driver can be ordered separately
Gross price (excl. VAT)
€ 54,50 Per 1 piece
€ 54,50 Per 1 piece
Raymond Sakko
Customer service
Do you have any questions?
Our specialists are ready for you
Customer service: Call us on: 123456
Order: I want an account
Questions: start the live chat
Our specialists are ready for you
Customer service: Call us on: 123456
Order: I want an account
Questions: start the live chat
Description
The LED I-Panel series are a good alternative for traditional recessed fluorescence luminaires. The neat lines and the limited height give these series a modern and timeless character. Through the various installation options; surface mounted, recessed and suspended, the LED I-panel has a very wide field of application.Product features
| Subgroup | LED I-Panel 295x295 mm |
| Brand | Prolumia |
| Suitable for wall mounting | No |
| Suitable for wall mounting | No |
| Suitable for suspended mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for built-in mounting | Yes |
| Suitable for surface mounting | No |
| Suitable for light line configuration | No |
| Suitable for workplace according to EN 12464-1 | No |
| Lamp type | LED not exchangeable |
| With light source | Yes |
| Lamp holder | Other |
| Housing material | Aluminium |
| Surface protection housing | Lacquered |
| Housing colour | White |
| Material cover | Plastic, opal |
| Type of grid | None |
| LED nominal current at constant current | 380 - 420 Milliampere |
| Voltage type | AC |
| Nominal current | 400 Milliampere |
| Type of control gear | LED operating device current-controlled |
| With control gear | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming DSI | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off (trailing edge) | No |
| Dimming phase cut-on (leading edge) | No |
| Dimming programmable | No |
| Dimming potentiometer (integrated) | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming depending on control gear | Yes |
| Light distributor | Diffuser lens/optic/panel |
| Light distribution | Symmetric |
| Beam angle | > 80° - Extreme wide beam |
| Light outlet | Direct |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Rated lifetime L70/B50 at 25 °C | 50000 Hour |
| Degree of protection (IP) | IP52 |
| Degree of protection (NEMA) | 1 |
| Protection class according to IEC 61140 | II |
| Emergency power supply integrated | No |
| Rated ambient temperature according to IEC 62722-2-1 | -20 - 50 Degrees celsius |
| Suitable for emergency lighting | No |
| With movement sensor | No |
| Luminaire efficacy | 80 Lumen/Watt |
| Rated luminous flux according to IEC 62722-2-1 | 880 Lumen |
| With light sensor | No |
| Covering of the luminaire with thermally insulating material possible | No |
| With air slots | No |
| Colour of light according to EN 12464-1 | Warm white < 3300 K |
| Max. system power | 11 Watt |
| Colour of light | White |
| Colour temperature | 3000 Kelvin |
| Colour rendering index CRI | 80-89 |
| Power factor | 0.9 |

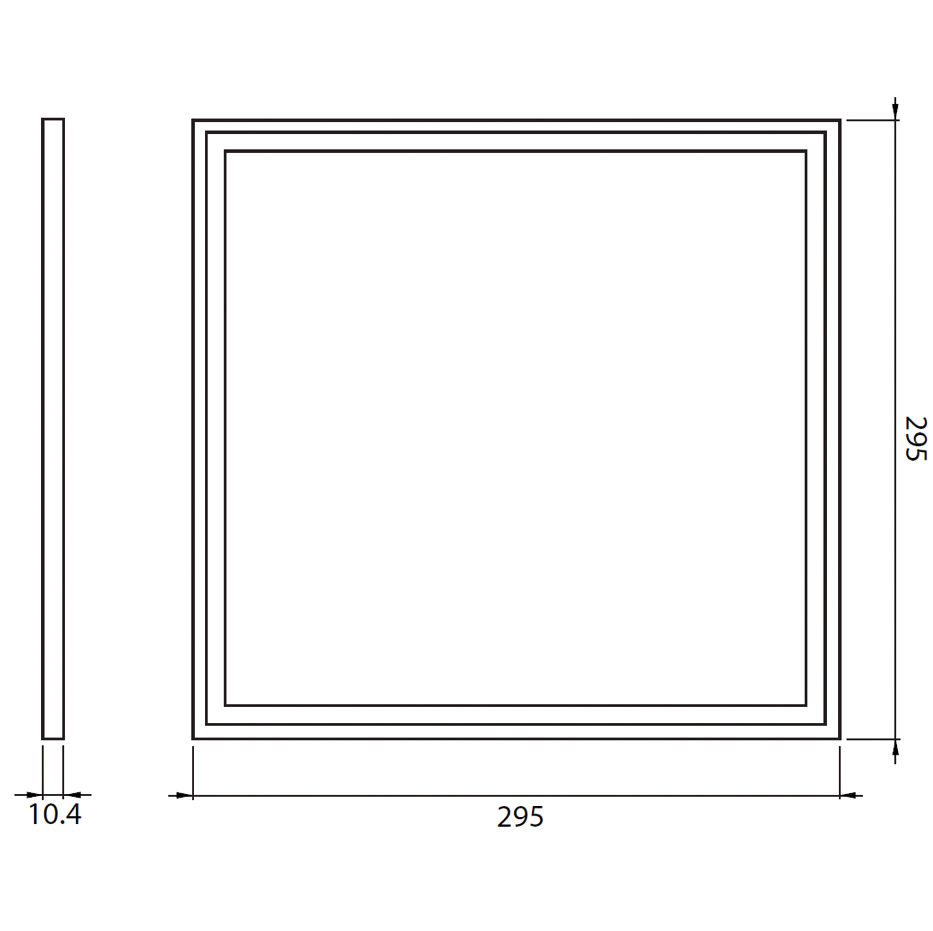

| Width | 295 Millimetre |
| Height/depth | 10.4 Millimetre |
| Length | 295 Millimetre |
| Built-in length | 295 Millimetre |
| Built-in width | 295 Millimetre |
| Total harmonic distortion | 0.2 |
| Built-in height/depth | 10.4 Millimetre |
| Type of wiring | Ending |
| Connection type | Blade terminal |
| Unified Glare Ratio (UGR) | 19 |
| Operation by Bluetooth | No |
